Fruit and vegetable juices are becoming increasingly popular,
for this reason we have decided for the development and design of a manual juicer. juicer. The main goal is to combine an elegant design with the functionality. It can squeeze juice from fruits and vegetables can be pressed, as well as oil.
for this reason we have decided for the development and design of a manual juicer. juicer. The main goal is to combine an elegant design with the functionality. It can squeeze juice from fruits and vegetables can be pressed, as well as oil.

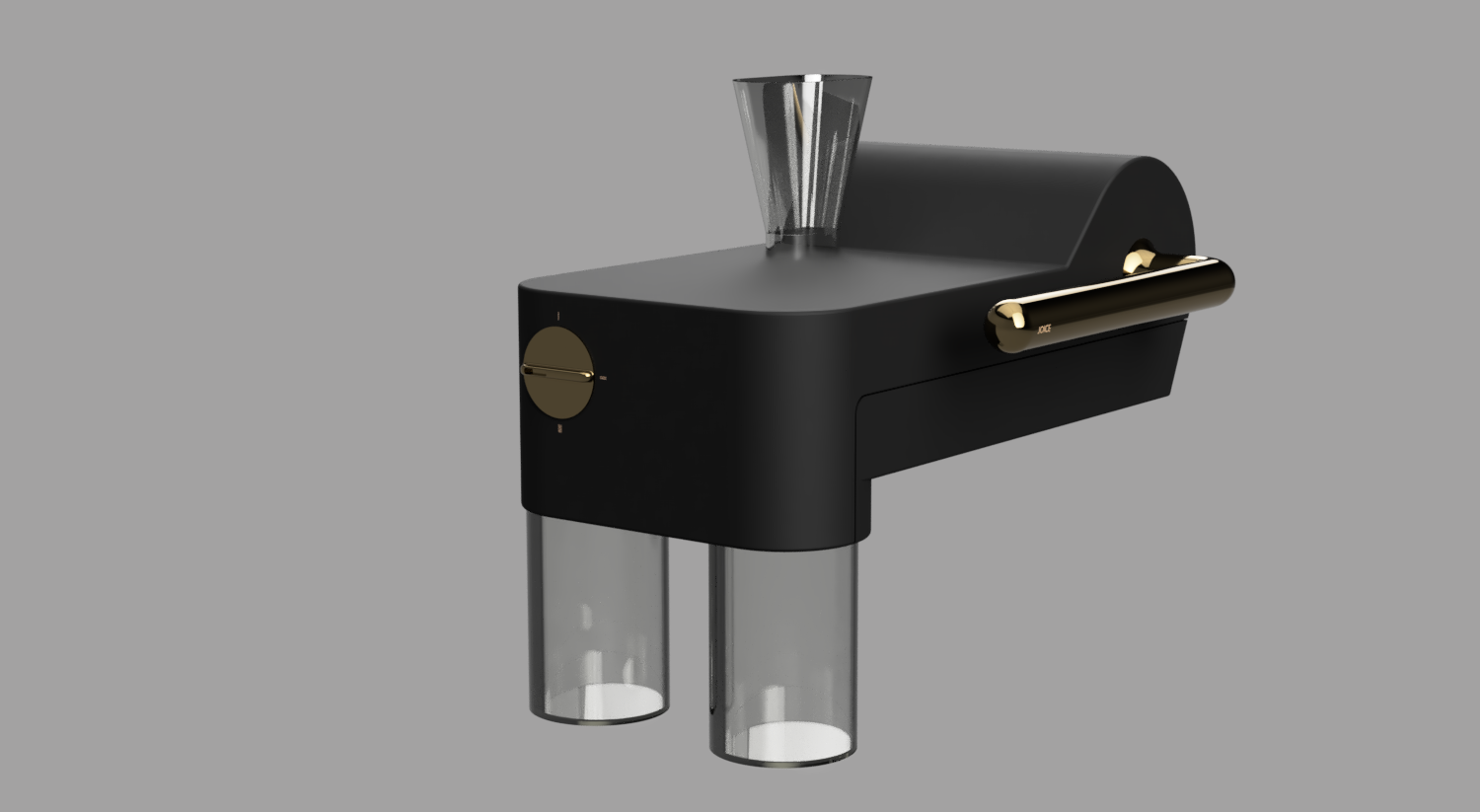

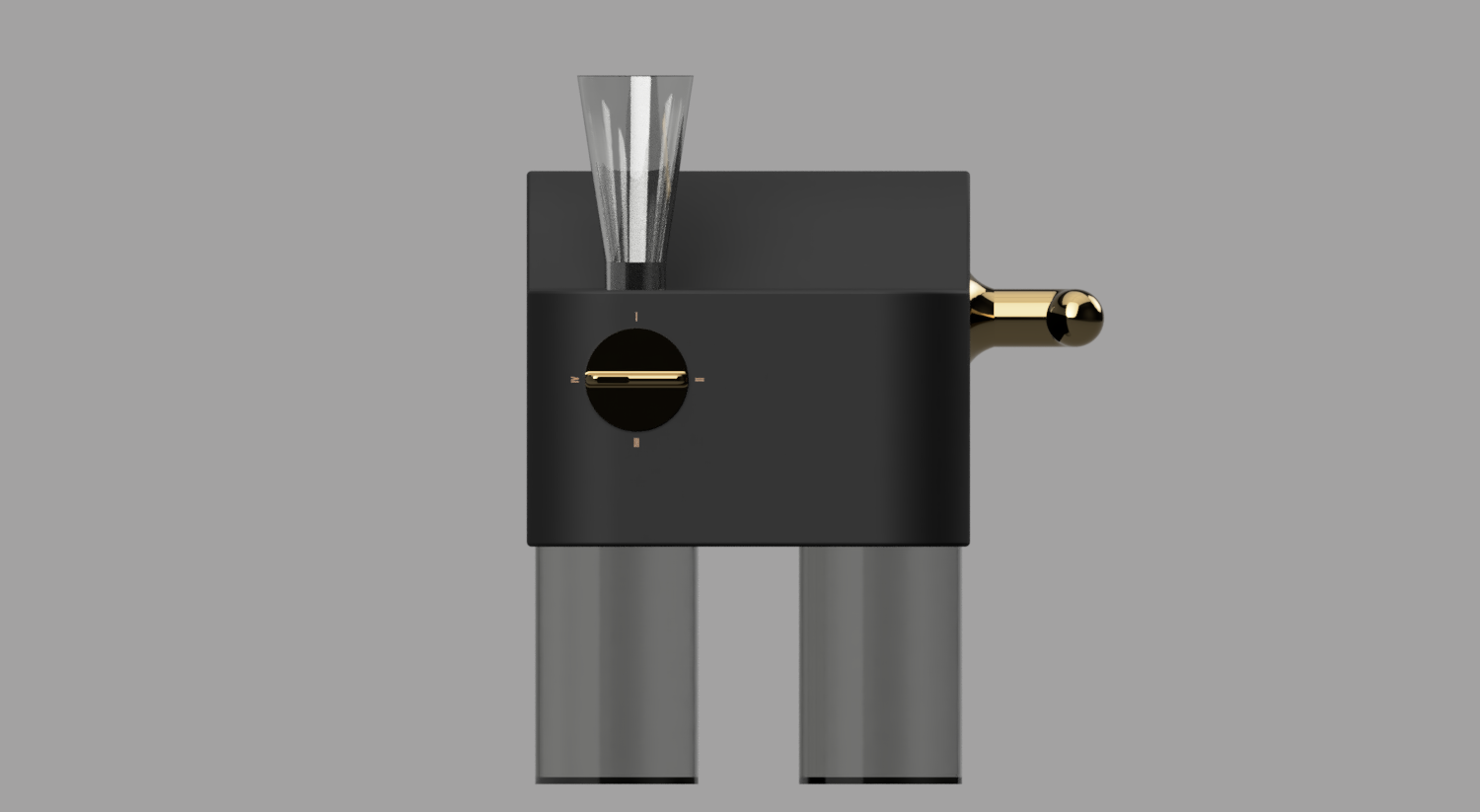

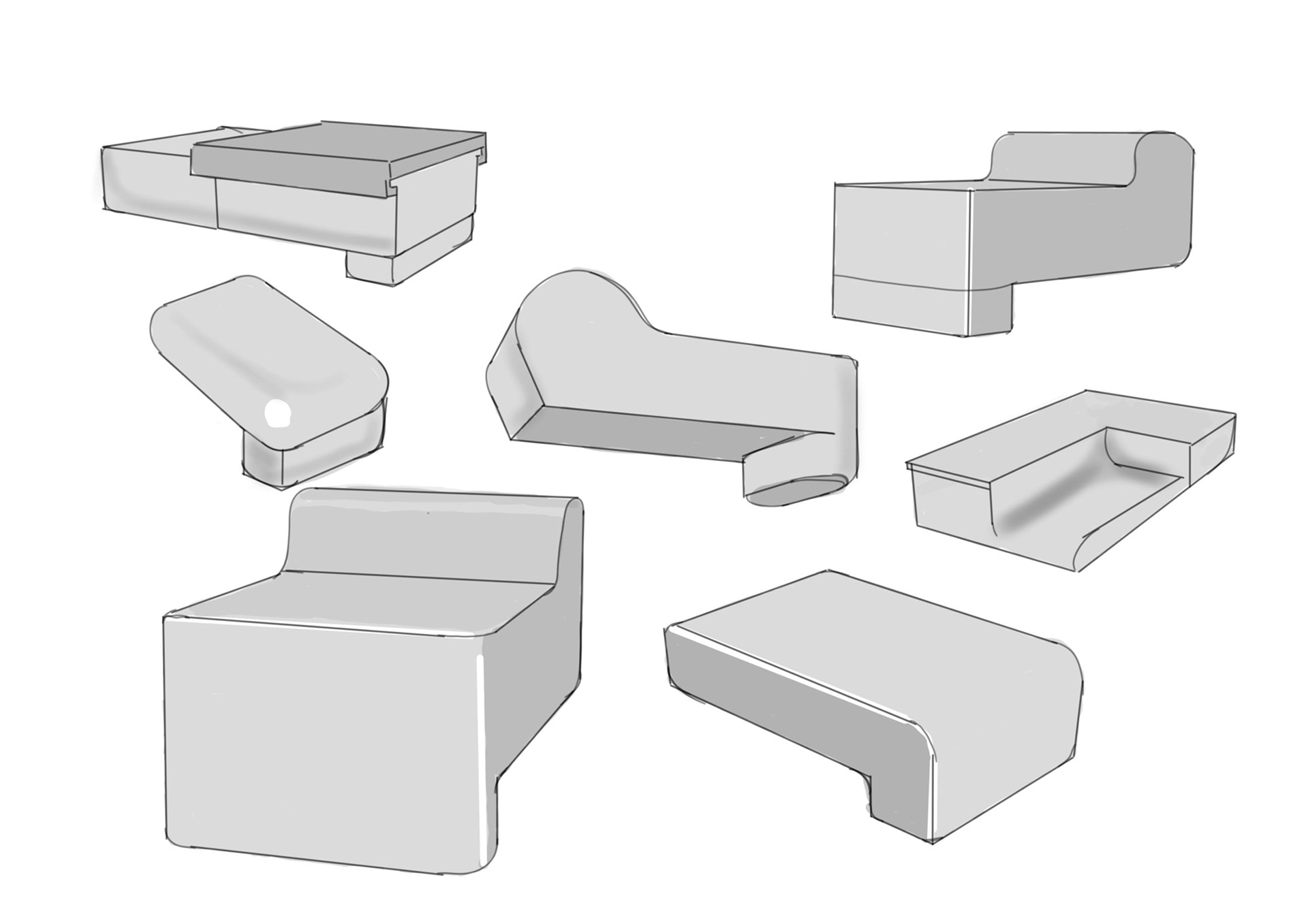

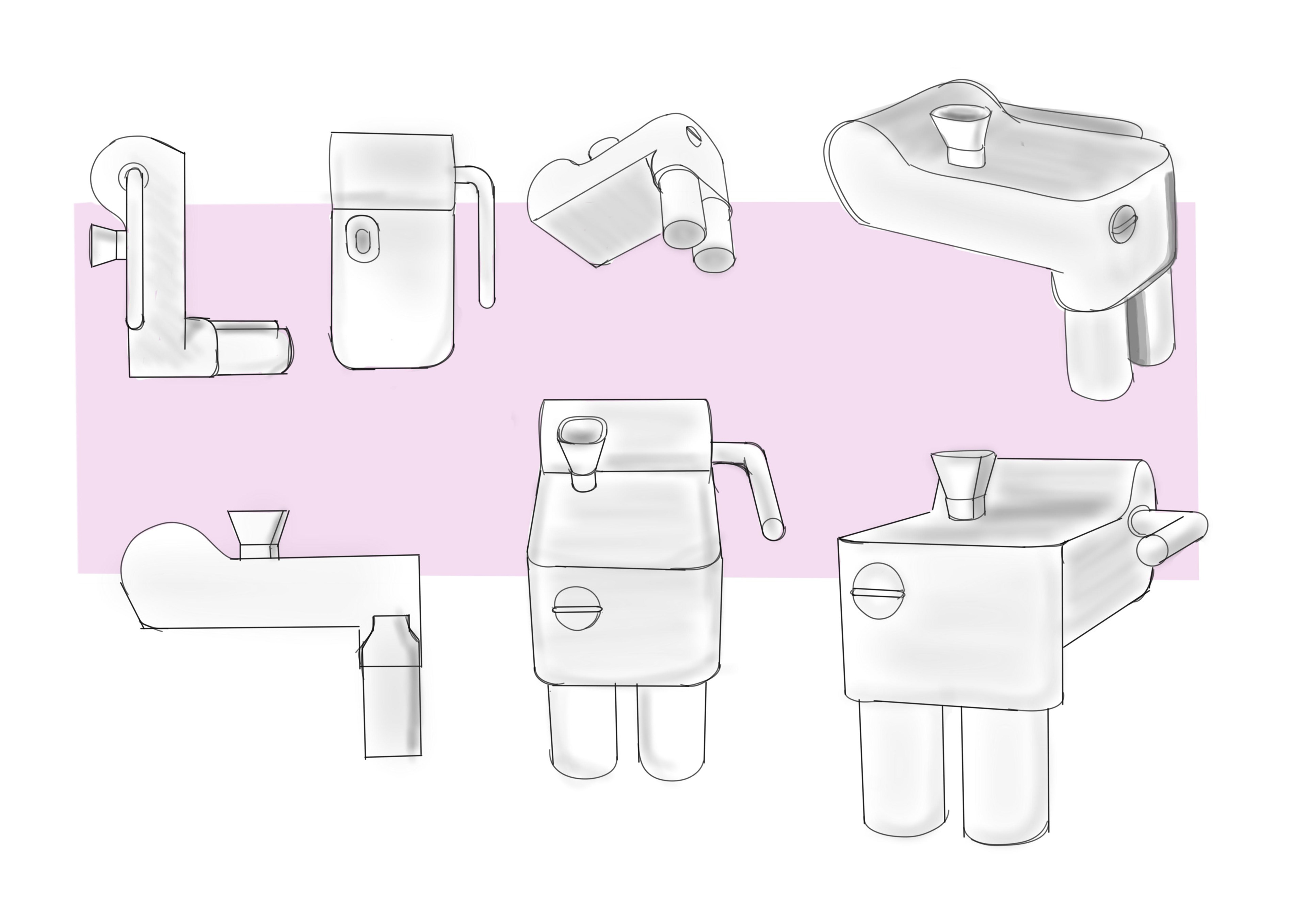

MANUAL COMBINED JUICE AND OIL PRESS

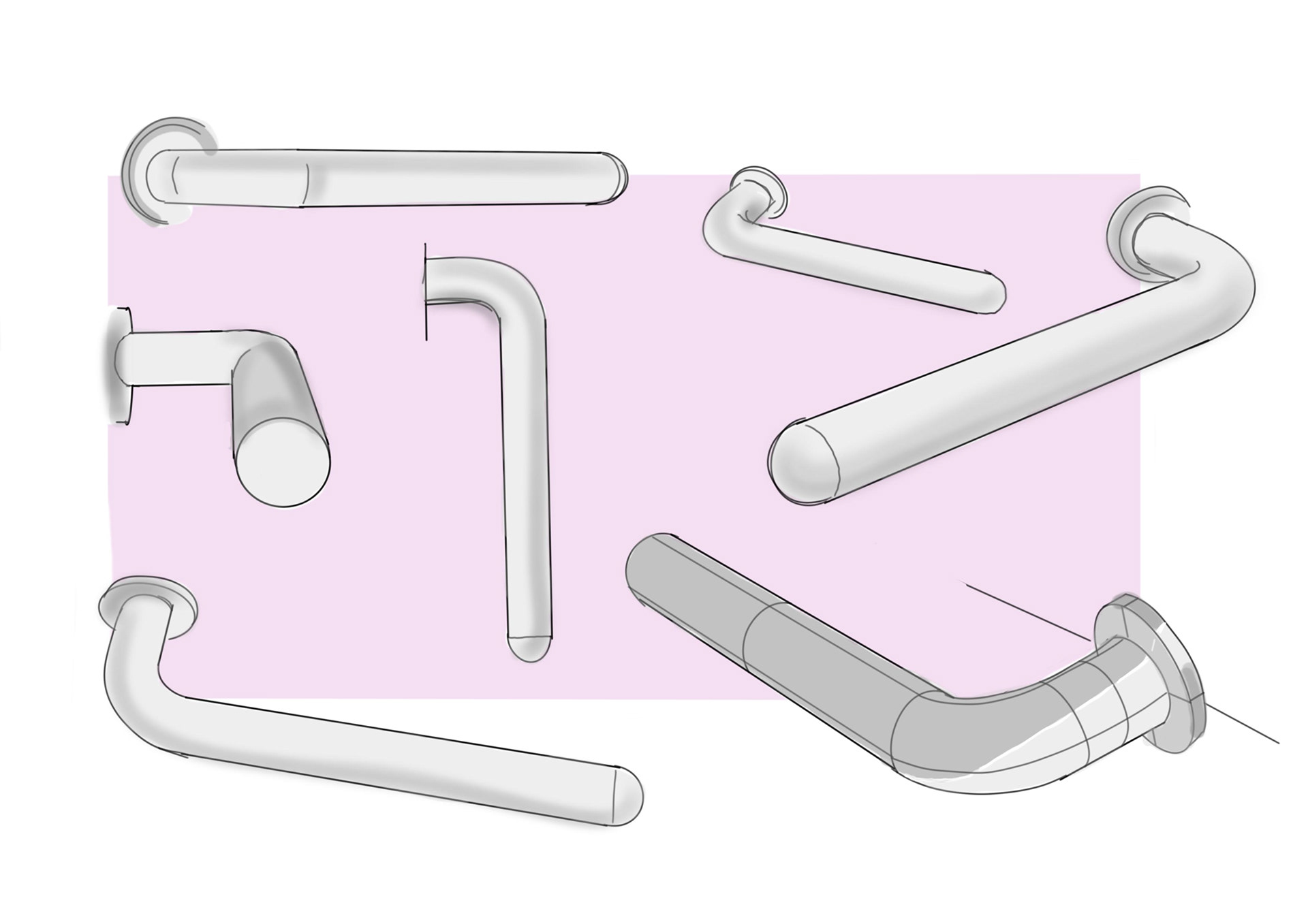

- Manual juice and oil press with handle
- Resting on the table (stability)

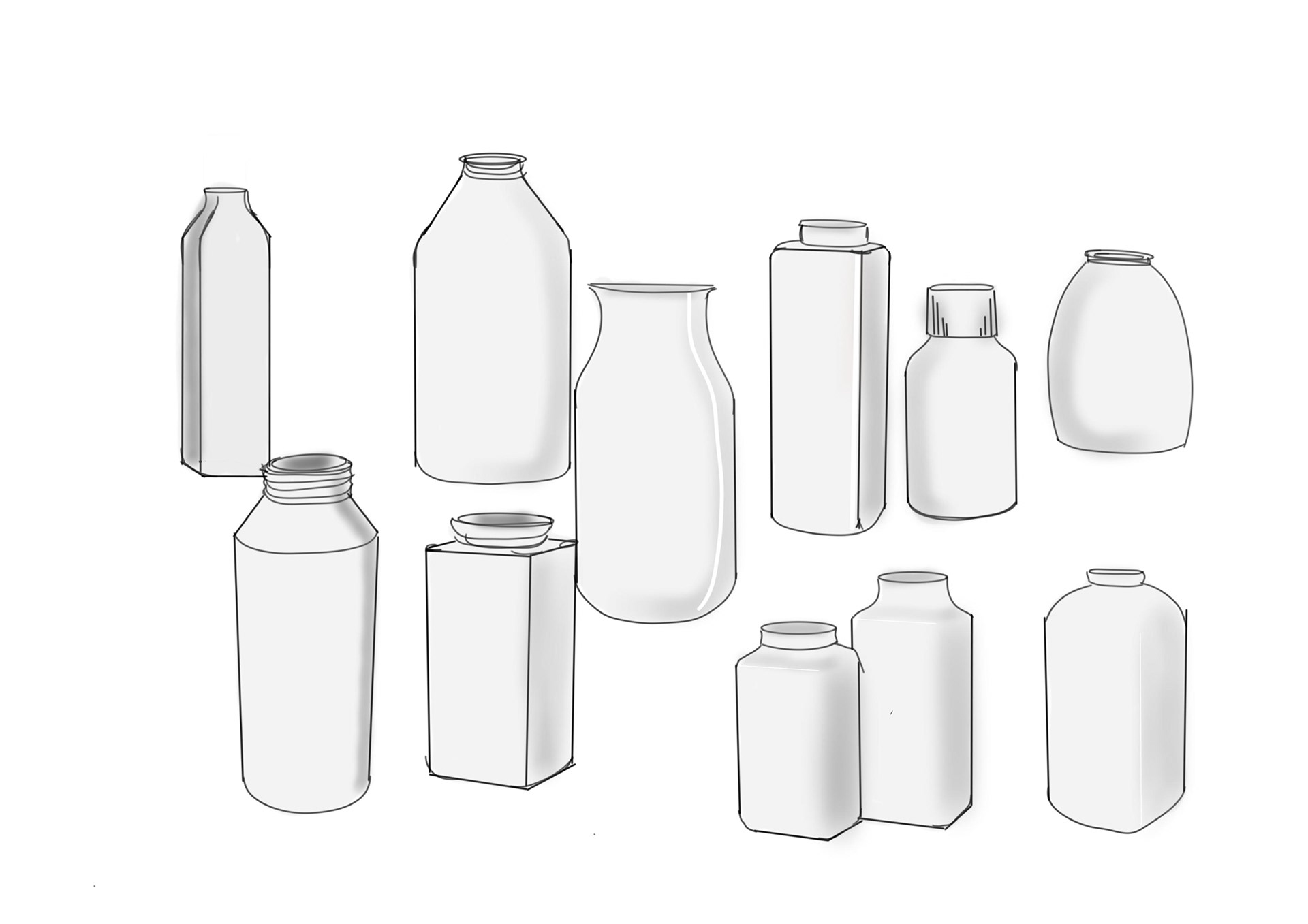

- Pomace and juice container to screw on
- 4 stages
- Manual juice and oil press with handle
- Resting on the table (stability)
- Pomace and juice container to screw on
- 4 stages
FUNCTIONALITY

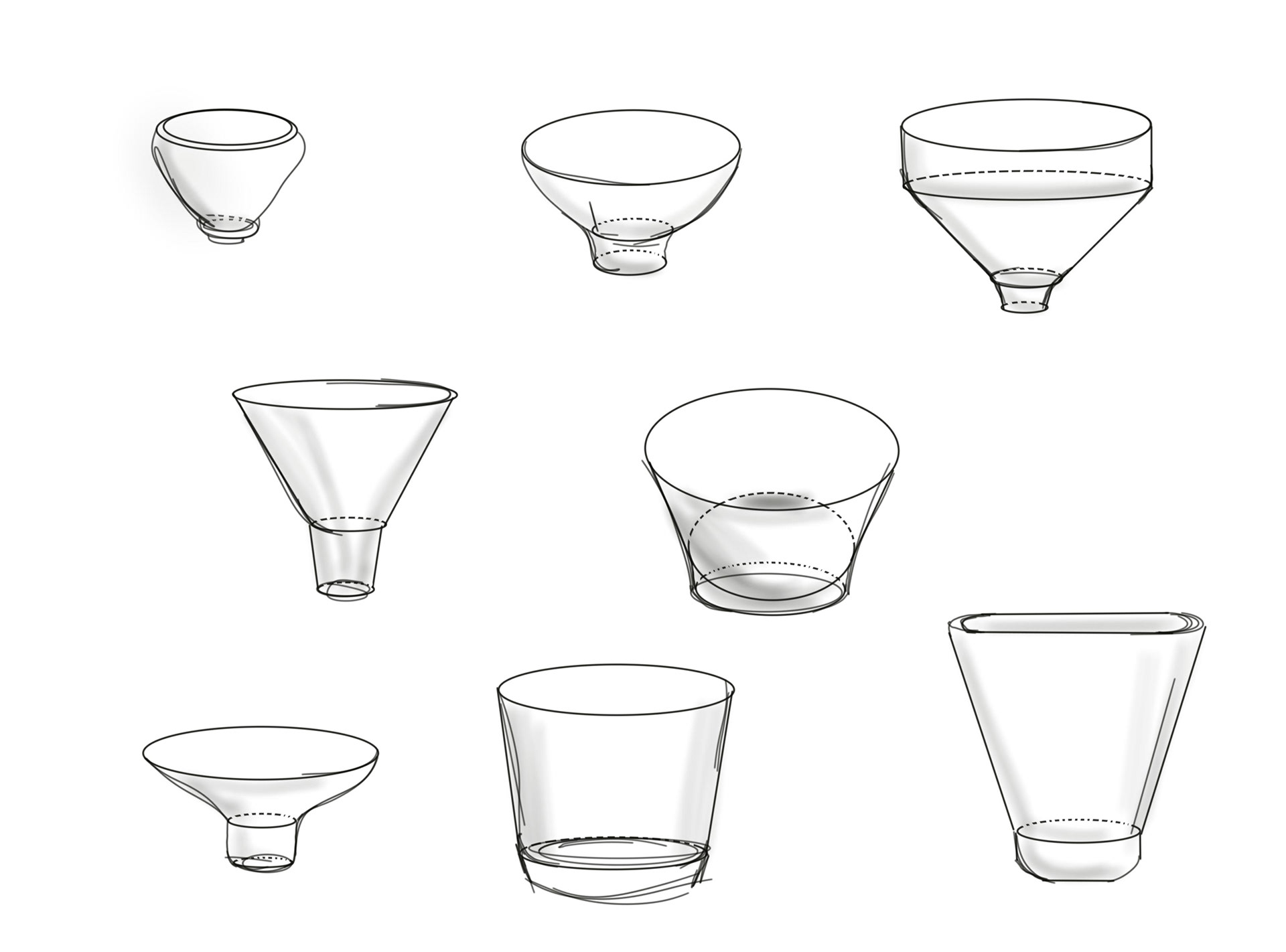

1. pressed product is filled into the container

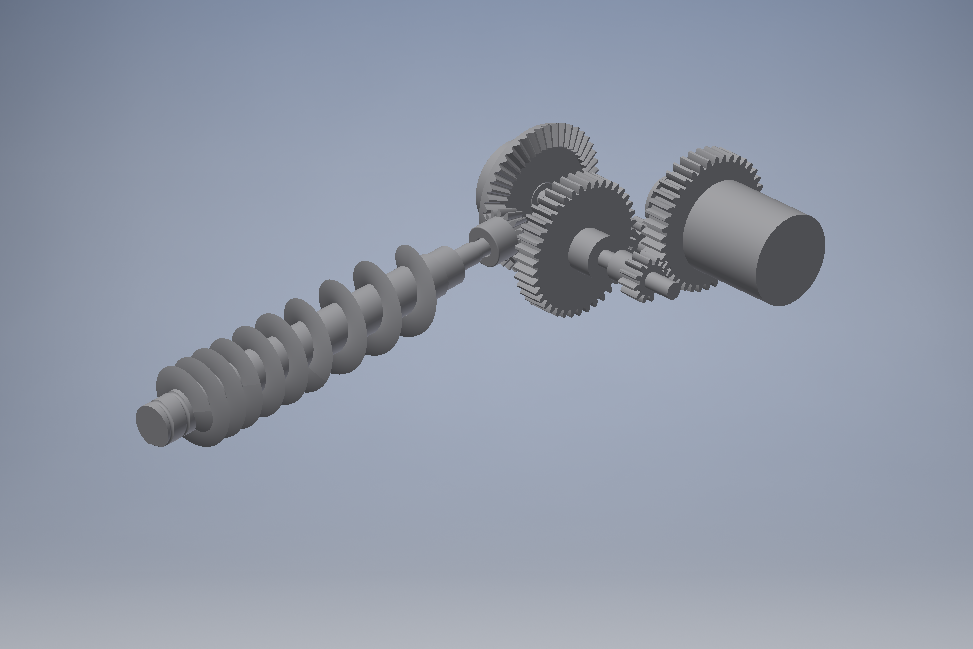

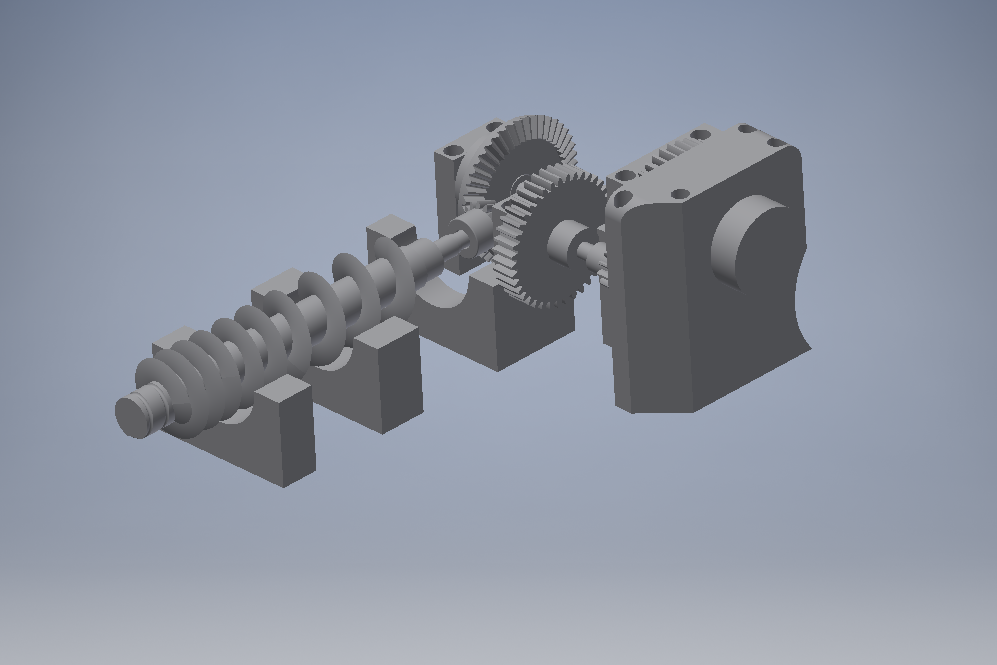

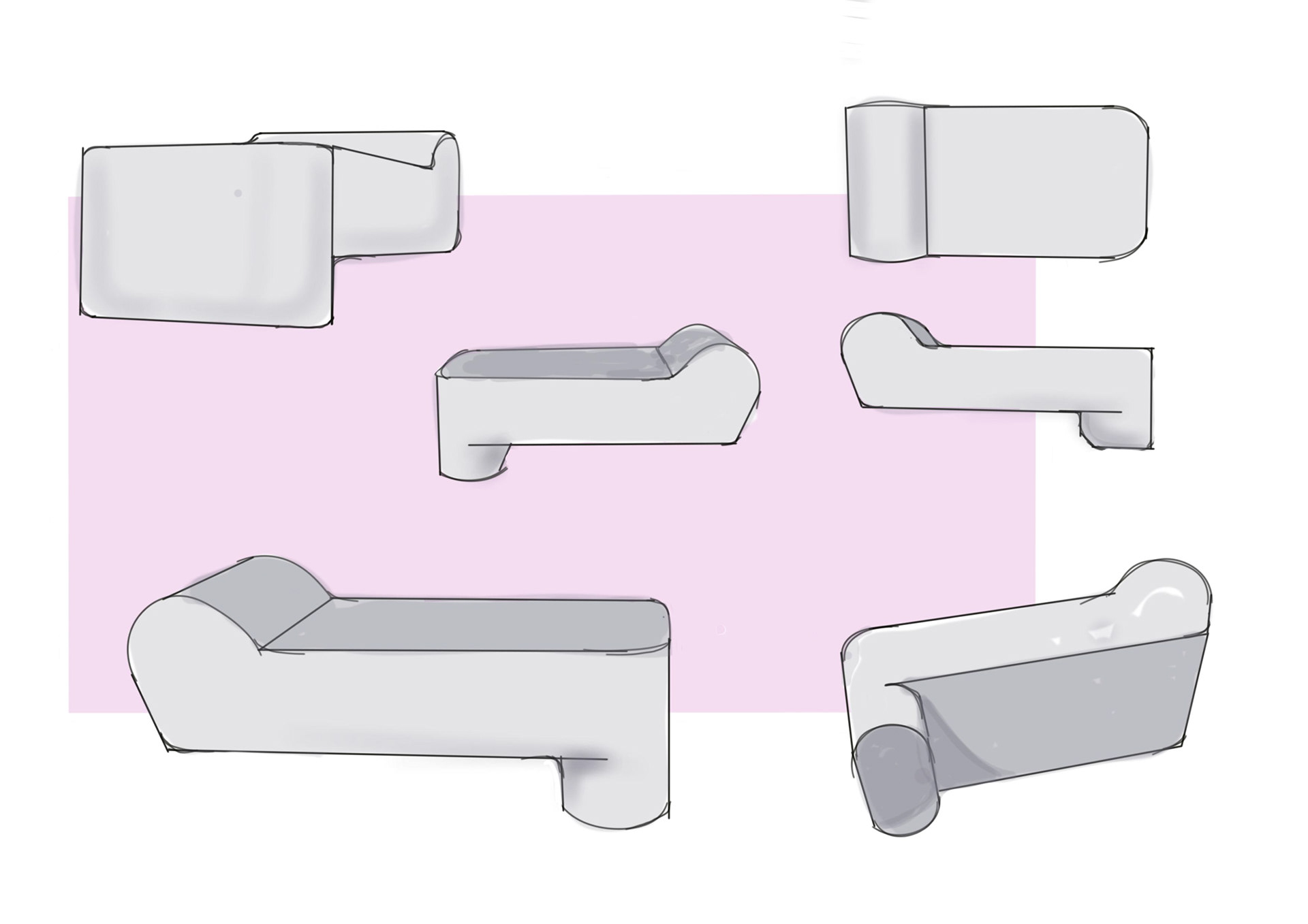

2. operation of the lever causes the rotation of the auger
3. pressed material is pulled into the screw
4. the pressed fruit is pressed through the screw flights
5. fruit pulp is separated from the juice
-> falls into the pomace container

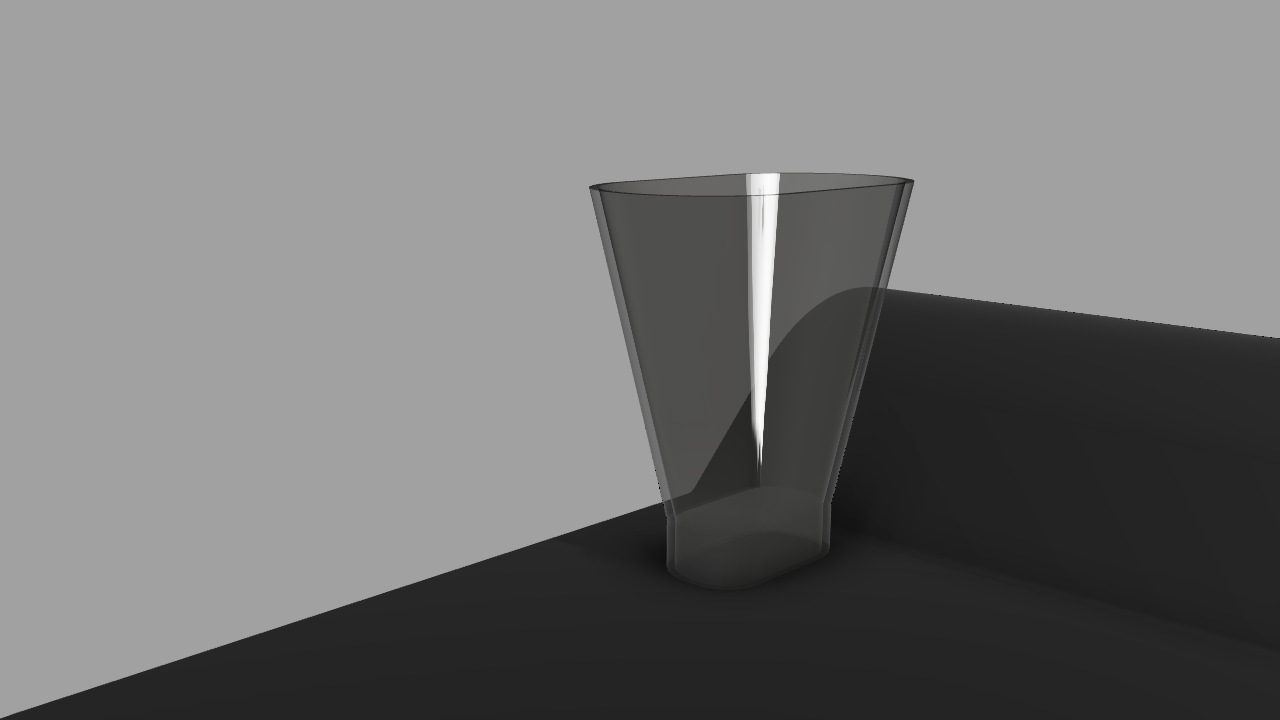

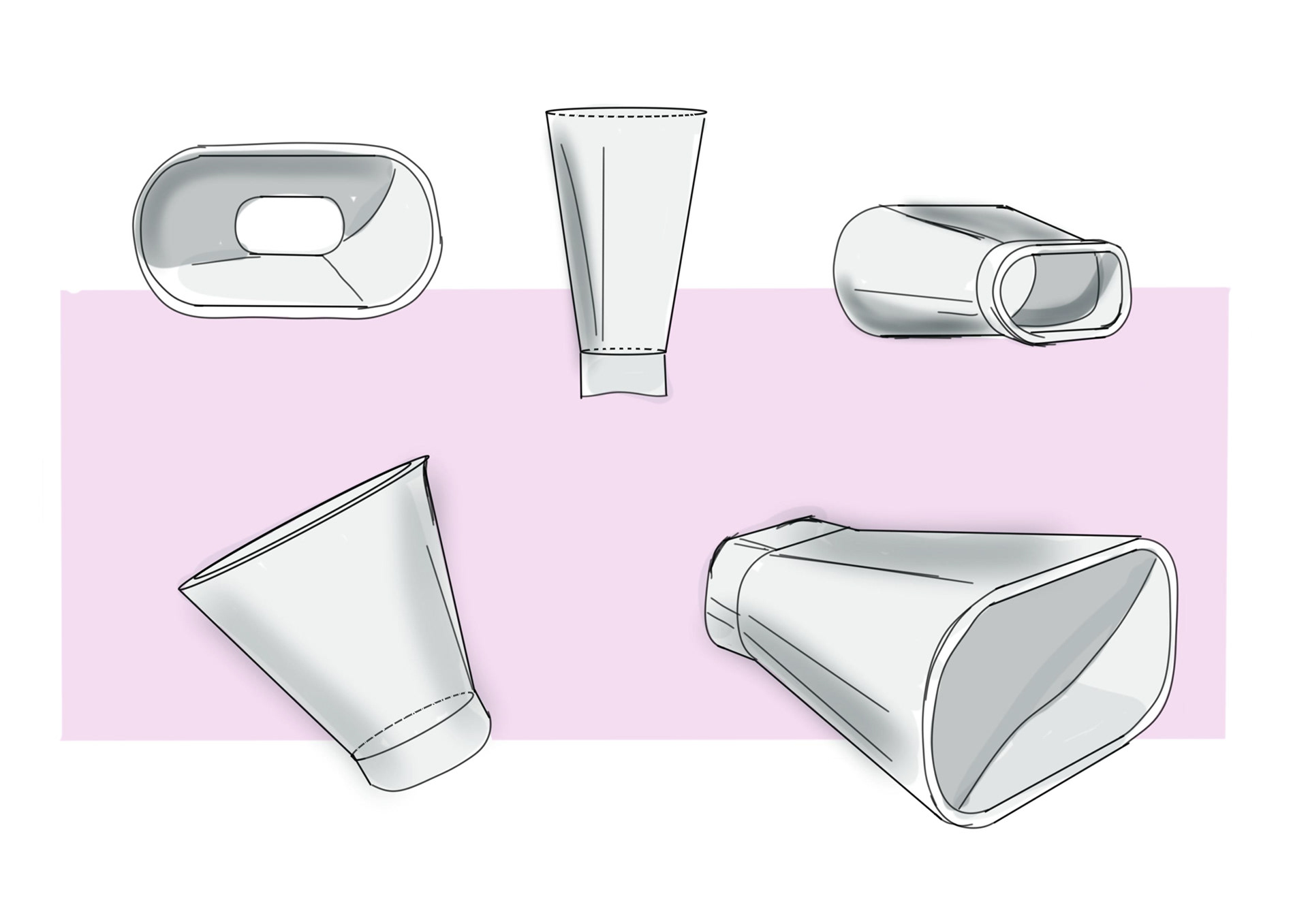

6. juice is pressed through a sieve and flows into the funnel.
funnel

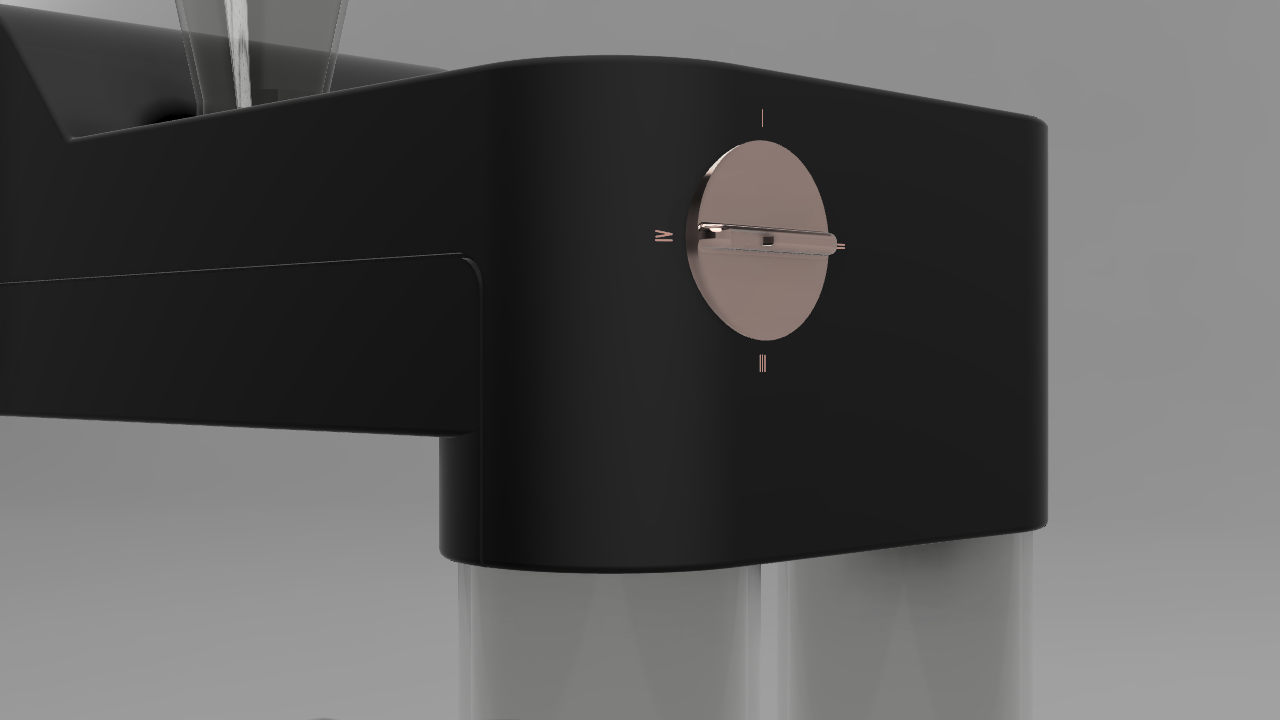

7. cleaning: screw and sieve can be removed
1. pressed product is filled into the container
2. operation of the lever causes the rotation of the auger
3. pressed material is pulled into the screw
4. the pressed fruit is pressed through the screw flights
5. fruit pulp is separated from the juice
-> falls into the pomace container
6. juice is pressed through a sieve and flows into the funnel.
funnel
7. cleaning: screw and sieve can be removed

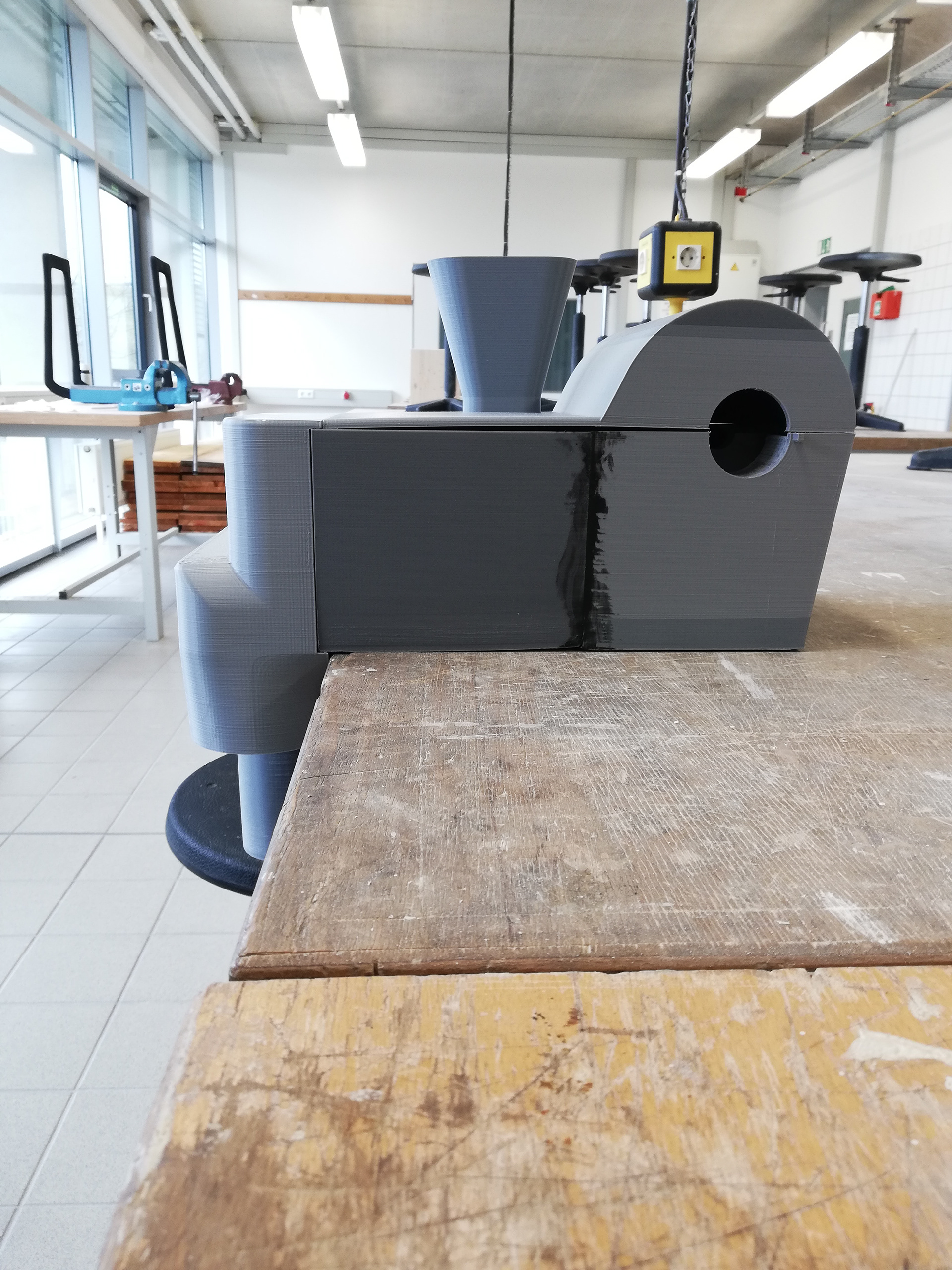

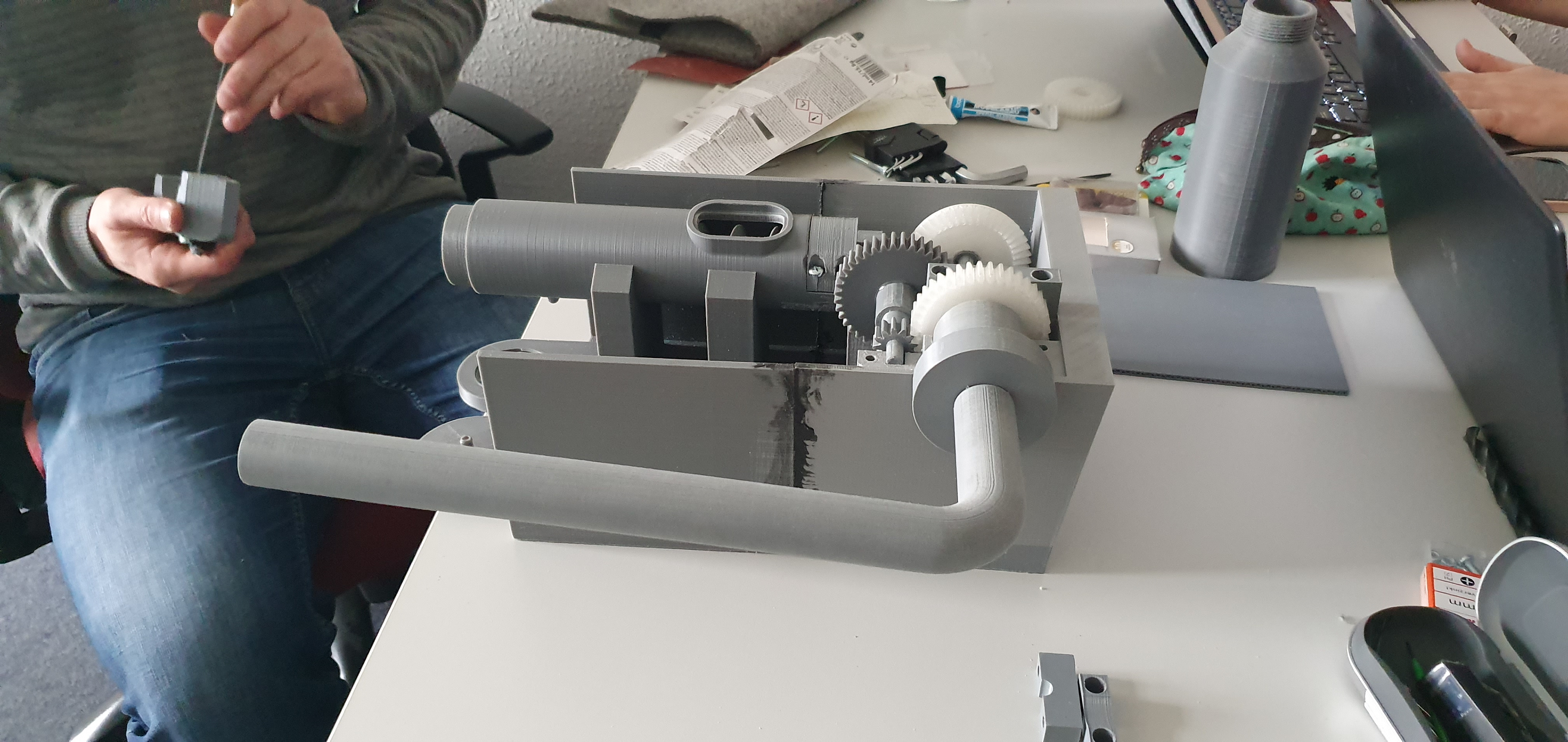

3d printed prototype, with which juice was pressed to check if the calculations are correct and the product works.
The juicer is designed for everyday use to squeeze juice as quickly as possible manually without electricity and take it with you on the go.
Interdisciplinary project
Manual combination juicer
Manual combination juicer
Lina Holz_Industrial Design
Maria Shebeshe_Industrial Design
Samuel Pioch_Mechanical Engineering
Maria Shebeshe_Industrial Design
Samuel Pioch_Mechanical Engineering
